Distributed solve scaling

This page is the hand-off guide for the distributed linear-solve scaling benchmark. It explains how to launch the canonical script on a multi-GPU node (or multi-process CPU), what each recorded metric means, how to read the resulting plot, and how to extend the benchmark with a new solver, partitioner, or problem.

The benchmark lives at

benchmarks/distributed/scaling/distributed_solve_scaling.py

and is the single, canonical entry point for distributed-solve scaling. It builds a row-sharded DSparseTensor from a reproducible Poisson problem (torch_sla.datasets), runs the unified distributed solve(), and records wall-clock solve time, the relative residual ||A x - b|| / ||b|| (the correctness gate), throughput, and parallel efficiency.

What it measures

Three experiment modes, selected with --mode:

Mode

What is held fixed / varied

Ideal curve

weak

Fixed DOF per rank; total DOF grows with the world size.

Solve time is flat as ranks grow.

strong

Fixed total DOF; world size grows.

Solve time halves each time ranks double (linear speedup).

throughput

DOF processed per second vs ranks (derived from the timed solve).

Throughput grows linearly with ranks.

All three are derived from the same instrumented solve, so a single launch at a given world size records everything for that world size. The JSON and plot accumulate across world sizes: run the script once per --nproc_per_node value and the rows append into one file. The p=1 run establishes the baseline that efficiency and speedup are measured against, so always run --nproc_per_node=1 first.

Hardware and launch model

The benchmark is launched with torchrun, which spawns one process (rank) per --nproc_per_node and sets the standard environment variables the script reads:

  • WORLD_SIZE – total number of ranks across all nodes.

  • RANK – this process’s global rank (0 .. WORLD_SIZE-1).

  • LOCAL_RANK – this process’s rank within its node; used to pick the GPU via torch.cuda.set_device(LOCAL_RANK).

The backend is chosen automatically: NCCL when CUDA is available (one rank per GPU), gloo on CPU (multi-process CPU, useful for exercising the distributed code paths on a single-GPU or CPU-only box).

Single node, multiple GPUs

# one rank per GPU on the local node
torchrun --standalone --nproc_per_node=4 \
    benchmarks/distributed/scaling/distributed_solve_scaling.py \
    --mode weak --dof-per-rank 100000

--standalone runs a single-node rendezvous on a free local port; no addresses to configure.

Multiple nodes

# on every node (HEAD_NODE_IP reachable by all, same --nnodes/--rdzv-id):
torchrun \
    --nnodes=2 --nproc_per_node=4 \
    --rdzv-id=sla-scaling --rdzv-backend=c10d \
    --rdzv-endpoint=HEAD_NODE_IP:29500 \
    benchmarks/distributed/scaling/distributed_solve_scaling.py \
    --mode weak --dof-per-rank 100000

NCCL environment variables worth knowing on multi-node clusters:

export NCCL_DEBUG=INFO          # print the transport NCCL selected
export NCCL_SOCKET_IFNAME=eth0  # pin the NIC if auto-detect picks the wrong one
export NCCL_IB_DISABLE=0        # keep InfiniBand on (1 to force TCP)

Copy-paste launch commands

Run the p=1 baseline first, then the larger world sizes. The JSON and plot accumulate, so just re-launch with a different --nproc_per_node.

Weak scaling (fixed DOF/rank):

for P in 1 2 4 8; do
  torchrun --standalone --nproc_per_node=$P \
    benchmarks/distributed/scaling/distributed_solve_scaling.py \
    --mode weak --dof-per-rank 100000 --method cg --partitioner simple
done

Strong scaling (fixed total DOF):

for P in 1 2 4 8; do
  torchrun --standalone --nproc_per_node=$P \
    benchmarks/distributed/scaling/distributed_solve_scaling.py \
    --mode strong --total-dof 4000000 --method cg --partitioner simple
done

Throughput curve (re-uses the weak rows; or run dedicated points):

for P in 1 2 4 8; do
  torchrun --standalone --nproc_per_node=$P \
    benchmarks/distributed/scaling/distributed_solve_scaling.py \
    --mode throughput --dof-per-rank 100000
done

Render the accumulated plot + table at any time (no torchrun):

python benchmarks/distributed/scaling/distributed_solve_scaling.py --plot-only

Example output

The block below is example output from a 1- and 2-rank CPU/gloo smoke test on a single iGPU box (macor7), confirming the script runs end-to-end and the correctness gate passes (residual at machine precision). The numbers are tiny by design – real multi-GPU scaling is the hand-off person’s job; replace this with NCCL multi-GPU runs.

==============================================================================
WEAK SCALING
==============================================================================
 ranks   DOF(global)   DOF/rank    time(s)    rel.res    thr(DOF/s)  efficiency
     1        10,000     10,000     0.0003   3.05e-13    31,201,532      100.0%
     2        19,881      9,940     0.0008   5.45e-13    26,079,256       42.0%

==============================================================================
STRONG SCALING
==============================================================================
 ranks   DOF(global)   DOF/rank    time(s)    rel.res    thr(DOF/s)  efficiency
     1        19,881     19,881     0.0005   5.31e-13    36,180,624      100.0%
     2        19,881      9,940     0.0009   5.45e-13    23,255,295       32.1%

Outputs:

benchmarks/results/distributed_solve_scaling.json   # all rows (accumulating)
assets/benchmarks/distributed_solve_scaling.png     # weak / strong / throughput panels

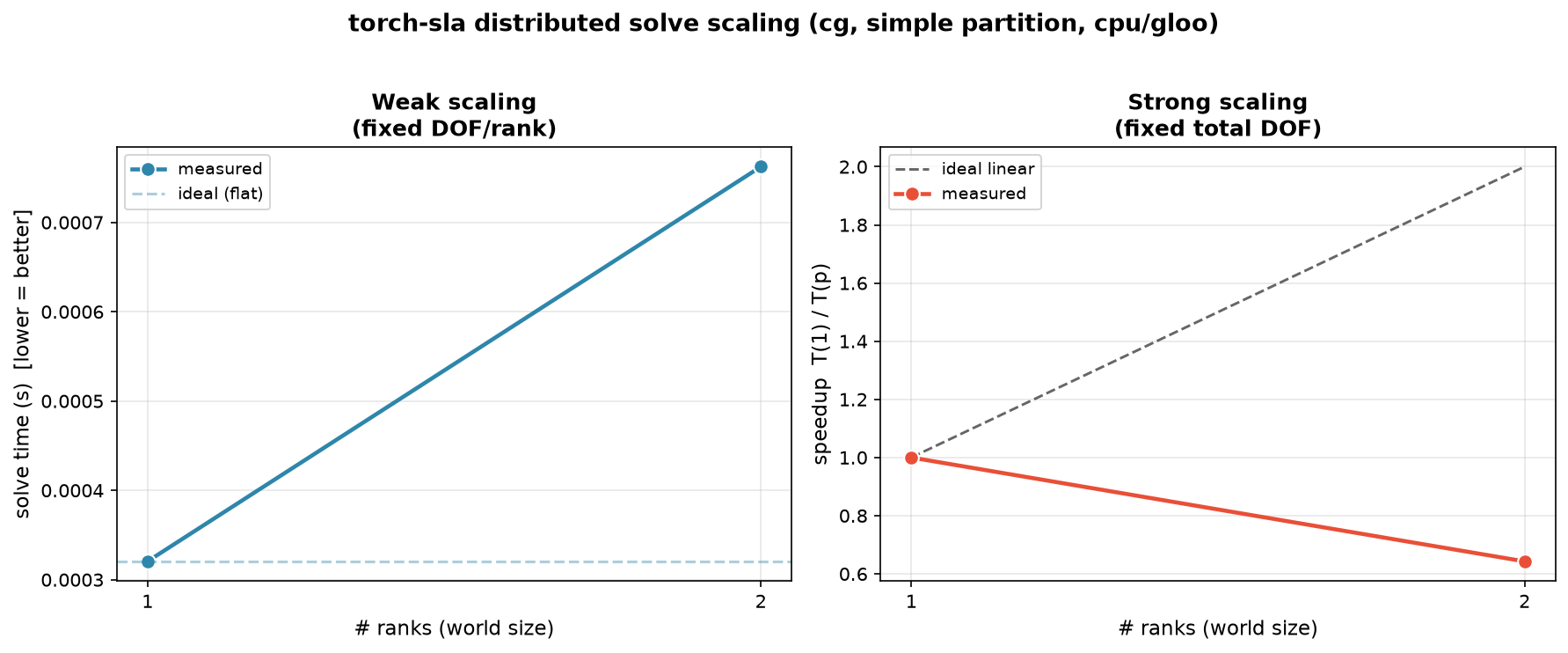

distributed solve scaling (weak / strong / throughput)

Reading the metrics

Metric

Meaning

world_size

Number of ranks (= GPUs for NCCL, = processes for gloo/CPU).

DOF(global) / DOF/rank

Total degrees of freedom and this rank’s owned share. In weak mode DOF/rank is held roughly fixed; in strong mode DOF/rank shrinks as ranks grow.

time(s)

Wall-clock solve time, best of --repeat timed solves, with a barrier + (CUDA) synchronize around each so all ranks are measured together.

rel.res

Relative residual ||A x - b|| / ||b|| – the correctness gate. Computed from public ops only (D @ x + an all-reduced sum of squared owned residuals, never a full gather). A converged SPD CG solve should land near the requested --rtol (well below 1e-4); a large residual means the solve did not converge.

thr(DOF/s)

DOF(global) / time – problem throughput.

efficiency

Parallel efficiency vs the p=1 baseline (ideal = 100%): weak = T(1)/T(p); strong = T(1)/(p·T(p)); throughput = (thr(p)/p)/thr(1).

Note

iterations is recorded as null. The distributed Krylov shard solvers (solve_distributed_shard()) return only the solution vector; iteration count is not exposed by the public API. The relative residual is the authoritative correctness signal. If per-iteration counts are needed later, thread an iteration counter out of torch_sla/distributed/solve.py (cg_shard et al.) and populate the iterations field.

What good scaling looks like, and caveats

  • Weak scaling – the solve-time curve should stay close to flat. A gentle upward slope is expected because each Krylov iteration costs one all_reduce (for the dot products) plus a halo exchange, and that communication grows slowly with rank count.

  • Strong scaling – speedup should track the dashed ideal-linear line at first, then bend over once the per-rank problem becomes too small to hide communication. The knee is the useful signal: it tells you the smallest DOF/rank that still scales.

  • Throughput – should rise roughly linearly with ranks while the problem stays compute-bound, then flatten when communication dominates.

Caveats the hand-off person should keep in mind:

  • Communication scales with halo size, not DOF. What crosses the wire each iteration is (a) a few scalars per all_reduce and (b) the halo (ghost) entries exchanged before each SpMV. Halo size depends on the partitioner: metis minimizes edge cut (smallest halo, best scaling) but costs more to build; simple (contiguous blocks) is cheap but can produce large halos for irregular graphs; coordinate (RCB, geometric) is a middle ground for grid-like problems and needs node coordinates (synthesized from the Poisson grid here).

  • CPU/gloo has no compute to hide comm behind. On a single CPU box the gloo runs pay the collective cost with no real network or GPU parallelism, so strong-scaling efficiency is expected to be poor. Use CPU/gloo to validate correctness and code paths, NCCL multi-GPU to measure real scaling.

  • Bytes per DOF per GPU – on NCCL, watch the ratio of halo bytes to owned DOF. Larger per-rank problems amortize the halo better; that is why weak scaling usually looks healthier than strong.

How to extend it

The script is structured so each axis is a small, isolated change:

  • Add a solver / method. Pass --method bicgstab (or gmres / minres); anything solve_distributed_shard accepts works. To add a brand-new method, implement <name>_shard in torch_sla/distributed/solve.py and wire it into solve_distributed_shard; no benchmark change is needed.

  • Add a partitioner. Extend _PARTITIONER_ALIASES in the script, mapping your CLI name to (method_string, needs_coords) understood by torch_sla.partition.resolve_partition_ids(). If it needs coordinates, _grid_coords already synthesizes them for the Poisson grid.

  • Add a problem. build_problem calls torch_sla.datasets.poisson_2d() / poisson_3d. Swap in any generator returning a SparseProblem (it must carry val/row/col/shape and an rhs); add a --problem flag and branch inside build_problem. Keep the fixed SEED so runs stay reproducible.

The recorded JSON schema is stable (one row per (mode, world_size, dof_per_rank, partitioner, method)), so external tooling can read benchmarks/results/distributed_solve_scaling.json directly.
